Main schema tridas.xsd
Namespace http://www.tridas.org/1.1
Properties
attribute form default: unqualified
element form default: qualified
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element createdTimestamp
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id9 tridasxmldocs0.tmp#id8
Type dateTime
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
Source

<xs:element name="createdTimestamp" type="dateTime"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

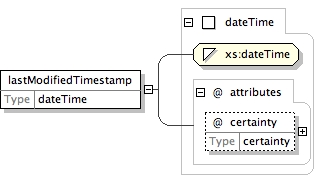

Element lastModifiedTimestamp
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id9 tridasxmldocs0.tmp#id8
Type dateTime
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
Source

<xs:element name="lastModifiedTimestamp" type="dateTime"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

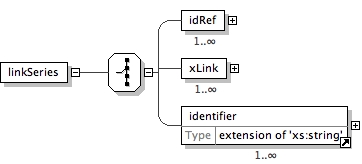

Element linkSeries
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id18 tridasxmldocs0.tmp#id20 tridasxmldocs0.tmp#id22
Properties
content: complex
Used by
Model idRef+ | xLink+ | identifier+
Children idRef, identifier, xLink
Instance

<linkSeries>
  <idRef ref="">{1,unbounded}</idRef>
  <xLink xlink:href="">{1,unbounded}</xLink>
  <identifier domain="">{1,unbounded}</identifier>
</linkSeries>
Source

<xs:element name="linkSeries">
  <xs:complexType>
    <xs:choice>
      <xs:element name="idRef" maxOccurs="unbounded">
        <xs:complexType>
          <xs:attribute name="ref" type="xs:IDREF"/>
        </xs:complexType>
      </xs:element>
      <xs:element name="xLink" maxOccurs="unbounded">
        <xs:complexType>
          <xs:attribute ref="xlink:href"/>
        </xs:complexType>
      </xs:element>
      <xs:element ref="identifier" maxOccurs="unbounded"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element linkSeries/idRef
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id19
Properties
content: complex
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
ref xs:IDREF optional
Source

<xs:element name="idRef" maxOccurs="unbounded">
  <xs:complexType>
    <xs:attribute name="ref" type="xs:IDREF"/>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element linkSeries/xLink
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs1.tmp#id21
Properties
content: complex
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
xlink:href anyURI optional
Source

<xs:element name="xLink" maxOccurs="unbounded">
  <xs:complexType>
    <xs:attribute ref="xlink:href"/>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

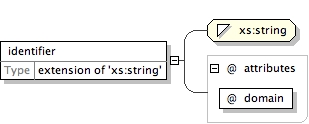

Element identifier
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id23
Type extension of xs:string
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
domain required
Source

<xs:element name="identifier">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:string">
        <xs:attribute name="domain" use="required"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element type
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id4 tridasxmldocs0.tmp#id5 tridasxmldocs0.tmp#id6 tridasxmldocs0.tmp#id3
Type controlledVoc
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
normal optional
normalId optional
normalStd optional
Source

<xs:element name="type" type="controlledVoc"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element description
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source

<xs:element name="description" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element title
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source

<xs:element name="title" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element extent
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id28 tridasxmldocs0.tmp#id52
Properties
content: complex
Used by
Element derivedSeries
Model extentGeometry , extentComment{0,1}
Children extentComment, extentGeometry
Instance

<extent>
  <extentGeometry>{1,1}</extentGeometry>
  <extentComment>{0,1}</extentComment>
</extent>
Source

<xs:element name="extent">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="extentGeometry"/>
      <xs:element ref="extentComment" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element extentGeometry
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs2.tmp#id29
Properties
content: complex
Used by
Element extent
Model gml:Polygon
Children gml:Polygon
Instance

<extentGeometry>
  <gml:Polygon gml:id="" srsName="">{1,1}</gml:Polygon>
</extentGeometry>
Source

<xs:element name="extentGeometry">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="gml:Polygon"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element extentComment
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element extent
Source

<xs:element name="extentComment" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

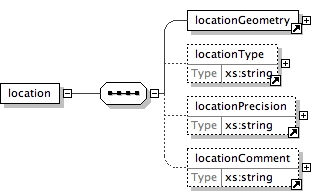

Element location
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id54 tridasxmldocs0.tmp#id60 tridasxmldocs0.tmp#id61 tridasxmldocs0.tmp#id62
Properties
content: complex
Used by
Elements element, object
Model locationGeometry , locationType{0,1} , locationPrecision{0,1} , locationComment{0,1}
Children locationComment, locationGeometry, locationPrecision, locationType
Instance

<location>
  <locationGeometry>{1,1}</locationGeometry>
  <locationType>{0,1}</locationType>
  <locationPrecision>{0,1}</locationPrecision>
  <locationComment>{0,1}</locationComment>
</location>
Source

<xs:element name="location">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="locationGeometry"/>
      <xs:element ref="locationType" minOccurs="0"/>
      <xs:element ref="locationPrecision" minOccurs="0"/>
      <xs:element ref="locationComment" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

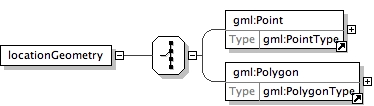

Element locationGeometry
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs2.tmp#id55 tridasxmldocs2.tmp#id29
Properties
content: complex
Used by
Element location
Model gml:Point | gml:Polygon
Children gml:Point, gml:Polygon
Instance

<locationGeometry>
  <gml:Point gml:id="" srsName="">{1,1}</gml:Point>
  <gml:Polygon gml:id="" srsName="">{1,1}</gml:Polygon>
</locationGeometry>
Source

<xs:element name="locationGeometry">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="gml:Point"/>
      <xs:element ref="gml:Polygon"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element locationType
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element location
Source

<xs:element name="locationType" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element locationPrecision
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element location
Source

<xs:element name="locationPrecision" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element locationComment
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element location
Source

<xs:element name="locationComment" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element file
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs1.tmp#id21
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
xlink:href anyURI required
Source

<xs:element name="file">
  <xs:complexType>
    <xs:attribute ref="xlink:href" use="required"/>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

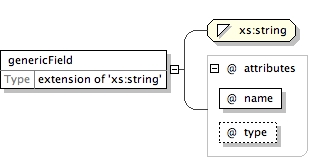

Element genericField
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id65 tridasxmldocs0.tmp#id66
Type extension of xs:string
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
name required
type optional
Source

<xs:element name="genericField">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:string">
        <xs:attribute name="name" use="required"/>
        <xs:attribute name="type" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element tridas
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id68
Properties
content: complex
Model project+
Children project
Instance

<tridas>
  <project>{1,unbounded}</project>
</tridas>
Source

<xs:element name="tridas">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="project" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

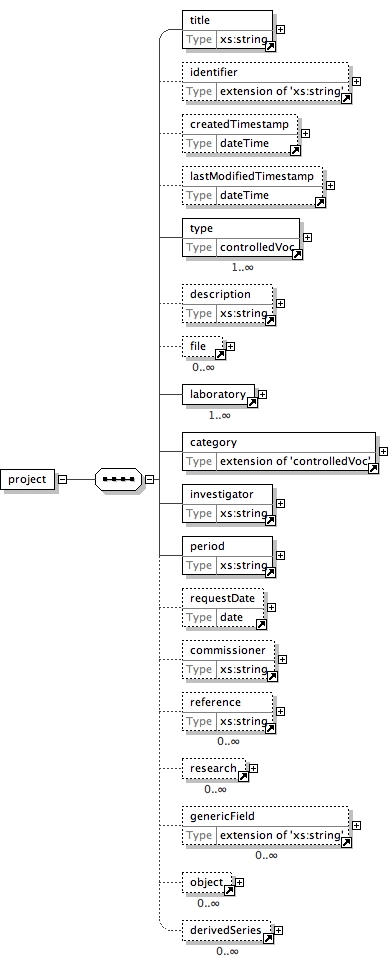

Element project
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id26 tridasxmldocs0.tmp#id22 tridasxmldocs0.tmp#id10 tridasxmldocs0.tmp#id11 tridasxmldocs0.tmp#id24 tridasxmldocs0.tmp#id25 tridasxmldocs0.tmp#id63 tridasxmldocs0.tmp#id69 tridasxmldocs0.tmp#id74 tridasxmldocs0.tmp#id76 tridasxmldocs0.tmp#id77 tridasxmldocs0.tmp#id78 tridasxmldocs0.tmp#id79 tridasxmldocs0.tmp#id80 tridasxmldocs0.tmp#id81 tridasxmldocs0.tmp#id64 tridasxmldocs0.tmp#id82 tridasxmldocs0.tmp#id166
Properties
content: complex
Used by
Element tridas
Model title , identifier{0,1} , createdTimestamp{0,1} , lastModifiedTimestamp{0,1} , type+ , description{0,1} , file* , laboratory+ , category , investigator , period , requestDate{0,1} , commissioner{0,1} , reference* , research* , genericField* , object* , derivedSeries*
Children category, commissioner, createdTimestamp, derivedSeries, description, file, genericField, identifier, investigator, laboratory, lastModifiedTimestamp, object, period, reference, requestDate, research, title, type
Instance

<project>
  <title>{1,1}</title>
  <identifier domain="">{0,1}</identifier>
  <createdTimestamp certainty="">{0,1}</createdTimestamp>
  <lastModifiedTimestamp certainty="">{0,1}</lastModifiedTimestamp>
  <type normal="" normalId="" normalStd="">{1,unbounded}</type>
  <description>{0,1}</description>
  <file xlink:href="">{0,unbounded}</file>

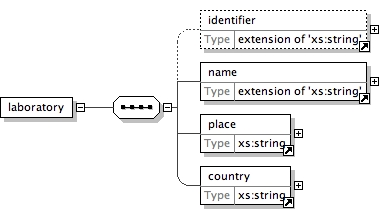

  <laboratory>{1,unbounded}</laboratory>
  <category normal="" normalId="" normalStd="" normalTridas="">{1,1}</category>
  <investigator>{1,1}</investigator>
  <period>{1,1}</period>
  <requestDate certainty="">{0,1}</requestDate>
  <commissioner>{0,1}</commissioner>
  <reference>{0,unbounded}</reference>

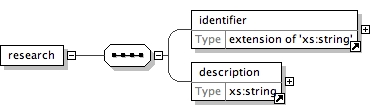

  <research>{0,unbounded}</research>
  <genericField name="" type="">{0,unbounded}</genericField>
  <object>{0,unbounded}</object>
  <derivedSeries id="">{0,unbounded}</derivedSeries>
</project>
Source

<xs:element name="project">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="title"/>
      <xs:element ref="identifier" minOccurs="0"/>
      <xs:element ref="createdTimestamp" minOccurs="0"/>
      <xs:element ref="lastModifiedTimestamp" minOccurs="0"/>
      <xs:element ref="type" maxOccurs="unbounded"/>
      <xs:element ref="description" minOccurs="0"/>
      <xs:element ref="file" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="laboratory" maxOccurs="unbounded"/>
      <xs:element ref="category"/>
      <xs:element ref="investigator"/>
      <xs:element ref="period"/>
      <xs:element ref="requestDate" minOccurs="0"/>
      <xs:element ref="commissioner" minOccurs="0"/>
      <xs:element ref="reference" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="research" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="genericField" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="object" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="derivedSeries" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element laboratory
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id22 tridasxmldocs0.tmp#id70 tridasxmldocs0.tmp#id72 tridasxmldocs0.tmp#id73
Properties
content: complex
Used by
Element project
Model identifier{0,1} , name , place , country
Children country, identifier, name, place
Instance

<laboratory>
  <identifier domain="">{0,1}</identifier>
  <name acronym="">{1,1}</name>
  <place>{1,1}</place>
  <country>{1,1}</country>
</laboratory>
Source

<xs:element name="laboratory">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="identifier" minOccurs="0"/>
      <xs:element ref="name"/>
      <xs:element ref="place"/>
      <xs:element ref="country"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

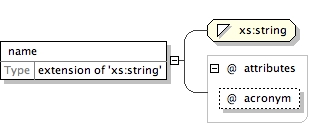

Element name
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id71
Type extension of xs:string
Properties
content: complex
Used by
Element laboratory
Attributes
QName Type Fixed Default Use Annotation
acronym optional
Source

<xs:element name="name">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:string">
        <xs:attribute name="acronym" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element place
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element laboratory
Source

<xs:element name="place" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element country
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element laboratory
Source

<xs:element name="country" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element category
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id4 tridasxmldocs0.tmp#id5 tridasxmldocs0.tmp#id6 tridasxmldocs0.tmp#id3 tridasxmldocs0.tmp#id75
Type extension of controlledVoc
Type hierarchy
Properties
content: complex
Used by
Element project
Attributes
QName Type Fixed Default Use Annotation
normal optional
normalId optional
normalStd optional
normalTridas restriction of xs:string optional
Source

<xs:element name="category">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="controlledVoc">
        <xs:attribute name="normalTridas">
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value=""/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element investigator
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element project
Source

<xs:element name="investigator" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element period
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element project
Source

<xs:element name="period" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element requestDate
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id13 tridasxmldocs0.tmp#id12
Type date
Properties
content: complex
Used by
Element project
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
Source

<xs:element name="requestDate" type="date"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element commissioner
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element project
Source

<xs:element name="commissioner" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element reference
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element project
Source

<xs:element name="reference" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element research
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id22 tridasxmldocs0.tmp#id25
Properties
content: complex
Used by
Element project
Model identifier , description
Children description, identifier
Instance

<research>
  <identifier domain="">{1,1}</identifier>
  <description>{1,1}</description>
</research>
Source

<xs:element name="research">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="identifier"/>
      <xs:element ref="description"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

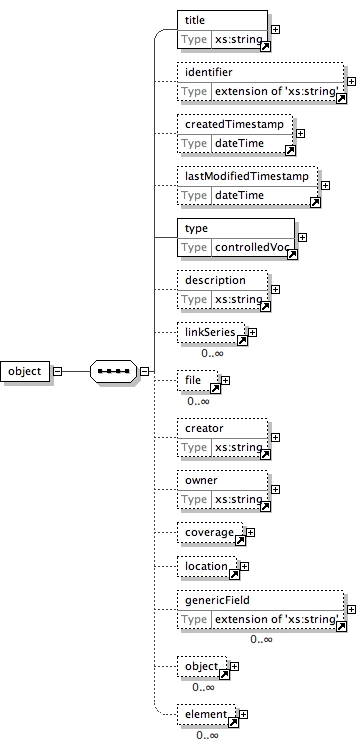

Element object
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id26 tridasxmldocs0.tmp#id22 tridasxmldocs0.tmp#id10 tridasxmldocs0.tmp#id11 tridasxmldocs0.tmp#id24 tridasxmldocs0.tmp#id25 tridasxmldocs0.tmp#id17 tridasxmldocs0.tmp#id63 tridasxmldocs0.tmp#id83 tridasxmldocs0.tmp#id84 tridasxmldocs0.tmp#id85 tridasxmldocs0.tmp#id53 tridasxmldocs0.tmp#id64 tridasxmldocs0.tmp#id82 tridasxmldocs0.tmp#id88
Properties
content: complex
Used by
Elements object, project
Model title , identifier{0,1} , createdTimestamp{0,1} , lastModifiedTimestamp{0,1} , type , description{0,1} , linkSeries* , file* , creator{0,1} , owner{0,1} , coverage{0,1} , location{0,1} , genericField* , object* , element*
Children coverage, createdTimestamp, creator, description, element, file, genericField, identifier, lastModifiedTimestamp, linkSeries, location, object, owner, title, type
Instance

<object>
  <title>{1,1}</title>
  <identifier domain="">{0,1}</identifier>
  <createdTimestamp certainty="">{0,1}</createdTimestamp>
  <lastModifiedTimestamp certainty="">{0,1}</lastModifiedTimestamp>
  <type normal="" normalId="" normalStd="">{1,1}</type>
  <description>{0,1}</description>
  <linkSeries>{0,unbounded}</linkSeries>
  <file xlink:href="">{0,unbounded}</file>
  <creator>{0,1}</creator>
  <owner>{0,1}</owner>
  <coverage>{0,1}</coverage>
  <location>{0,1}</location>
  <genericField name="" type="">{0,unbounded}</genericField>
  <object>{0,unbounded}</object>
  <element>{0,unbounded}</element>
</object>
Source

<xs:element name="object">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="title"/>
      <xs:element ref="identifier" minOccurs="0"/>
      <xs:element ref="createdTimestamp" minOccurs="0"/>
      <xs:element ref="lastModifiedTimestamp" minOccurs="0"/>
      <xs:element ref="type"/>
      <xs:element ref="description" minOccurs="0"/>
      <xs:element ref="linkSeries" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="file" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="creator" minOccurs="0"/>
      <xs:element ref="owner" minOccurs="0"/>
      <xs:element ref="coverage" minOccurs="0"/>
      <xs:element ref="location" minOccurs="0"/>
      <xs:element ref="genericField" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="object" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="element" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element creator
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element object
Source

<xs:element name="creator" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element owner
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element object
Source

<xs:element name="owner" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

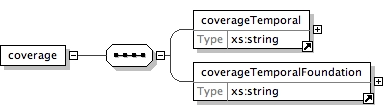

Element coverage
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id86 tridasxmldocs0.tmp#id87
Properties
content: complex
Used by
Element object
Model coverageTemporal , coverageTemporalFoundation
Children coverageTemporal, coverageTemporalFoundation
Instance

<coverage>
  <coverageTemporal>{1,1}</coverageTemporal>
  <coverageTemporalFoundation>{1,1}</coverageTemporalFoundation>
</coverage>
Source

<xs:element name="coverage">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="coverageTemporal"/>
      <xs:element ref="coverageTemporalFoundation"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element coverageTemporal
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element coverage
Source

<xs:element name="coverageTemporal" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element coverageTemporalFoundation
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element coverage
Source

<xs:element name="coverageTemporalFoundation" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

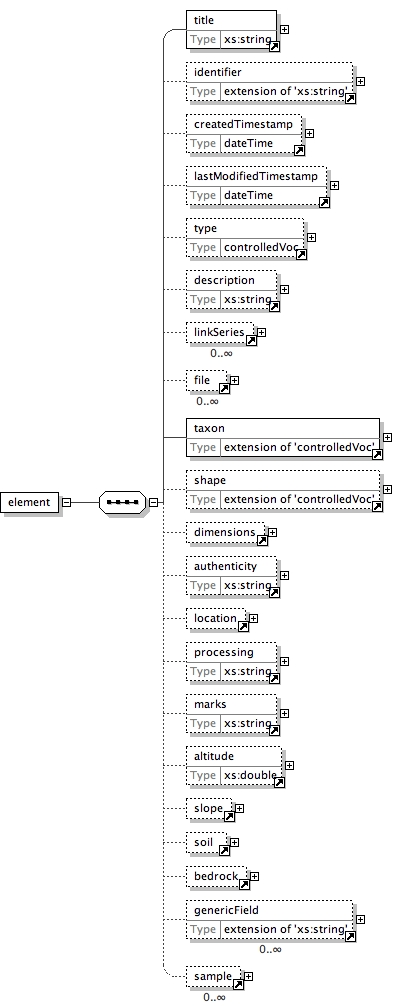

Element element
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id26 tridasxmldocs0.tmp#id22 tridasxmldocs0.tmp#id10 tridasxmldocs0.tmp#id11 tridasxmldocs0.tmp#id24 tridasxmldocs0.tmp#id25 tridasxmldocs0.tmp#id17 tridasxmldocs0.tmp#id63 tridasxmldocs0.tmp#id89 tridasxmldocs0.tmp#id91 tridasxmldocs0.tmp#id93 tridasxmldocs0.tmp#id100 tridasxmldocs0.tmp#id53 tridasxmldocs0.tmp#id101 tridasxmldocs0.tmp#id102 tridasxmldocs0.tmp#id103 tridasxmldocs0.tmp#id104 tridasxmldocs0.tmp#id107 tridasxmldocs0.tmp#id110 tridasxmldocs0.tmp#id64 tridasxmldocs0.tmp#id112
Properties
content: complex
Used by
Element object
Model title , identifier{0,1} , createdTimestamp{0,1} , lastModifiedTimestamp{0,1} , type{0,1} , description{0,1} , linkSeries* , file* , taxon , shape{0,1} , dimensions{0,1} , authenticity{0,1} , location{0,1} , processing{0,1} , marks{0,1} , altitude{0,1} , slope{0,1} , soil{0,1} , bedrock{0,1} , genericField* , sample*
Children altitude, authenticity, bedrock, createdTimestamp, description, dimensions, file, genericField, identifier, lastModifiedTimestamp, linkSeries, location, marks, processing, sample, shape, slope, soil, taxon, title, type
Instance

<element>
  <title>{1,1}</title>
  <identifier domain="">{0,1}</identifier>
  <createdTimestamp certainty="">{0,1}</createdTimestamp>
  <lastModifiedTimestamp certainty="">{0,1}</lastModifiedTimestamp>
  <type normal="" normalId="" normalStd="">{0,1}</type>
  <description>{0,1}</description>
  <linkSeries>{0,unbounded}</linkSeries>
  <file xlink:href="">{0,unbounded}</file>
  <taxon normal="" normalId="" normalStd="" normalTridas="">{1,1}</taxon>
  <shape normal="" normalId="" normalStd="" normalTridas="">{0,1}</shape>

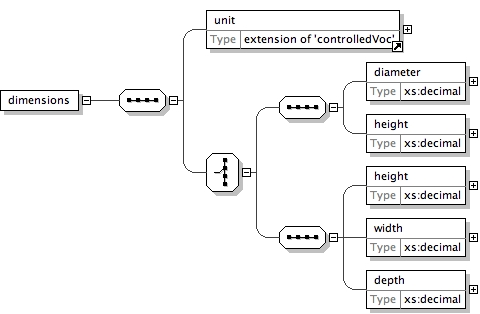

  <dimensions>{0,1}</dimensions>
  <authenticity>{0,1}</authenticity>
  <location>{0,1}</location>
  <processing>{0,1}</processing>
  <marks>{0,1}</marks>
  <altitude>{0,1}</altitude>
  <slope>{0,1}</slope>
  <soil>{0,1}</soil>
  <bedrock>{0,1}</bedrock>
  <genericField name="" type="">{0,unbounded}</genericField>
  <sample>{0,unbounded}</sample>
</element>
Source

<xs:element name="element">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="title"/>
      <xs:element ref="identifier" minOccurs="0"/>
      <xs:element ref="createdTimestamp" minOccurs="0"/>
      <xs:element ref="lastModifiedTimestamp" minOccurs="0"/>
      <xs:element ref="type" minOccurs="0"/>
      <xs:element ref="description" minOccurs="0"/>
      <xs:element ref="linkSeries" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="file" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="taxon"/>
      <xs:element ref="shape" minOccurs="0"/>
      <xs:element ref="dimensions" minOccurs="0"/>
      <xs:element ref="authenticity" minOccurs="0"/>
      <xs:element ref="location" minOccurs="0"/>
      <xs:element ref="processing" minOccurs="0"/>
      <xs:element ref="marks" minOccurs="0"/>
      <xs:element ref="altitude" minOccurs="0"/>
      <xs:element ref="slope" minOccurs="0"/>
      <xs:element ref="soil" minOccurs="0"/>
      <xs:element ref="bedrock" minOccurs="0"/>
      <xs:element ref="genericField" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="sample" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element taxon
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id4 tridasxmldocs0.tmp#id5 tridasxmldocs0.tmp#id6 tridasxmldocs0.tmp#id3 tridasxmldocs0.tmp#id90
Type extension of controlledVoc
Type hierarchy
Properties
content: complex
Used by
Element element
Attributes
QName Type Fixed Default Use Annotation
normal optional
normalId optional
normalStd optional
normalTridas restriction of xs:string optional
Source

<xs:element name="taxon">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="controlledVoc">
        <xs:attribute name="normalTridas">
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value=""/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element shape
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id4 tridasxmldocs0.tmp#id5 tridasxmldocs0.tmp#id6 tridasxmldocs0.tmp#id3 tridasxmldocs0.tmp#id92
Type extension of controlledVoc
Type hierarchy
Properties
content: complex
Used by
Element element
Attributes
QName Type Fixed Default Use Annotation
normal optional
normalId optional
normalStd optional
normalTridas restriction of xs:string optional
Source

<xs:element name="shape">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="controlledVoc">
        <xs:attribute name="normalTridas">
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value=""/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element dimensions
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id94 tridasxmldocs0.tmp#id96 tridasxmldocs0.tmp#id97 tridasxmldocs0.tmp#id98 tridasxmldocs0.tmp#id99
Properties
content: complex
Used by
Element element
Model unit , ((diameter , height) | (height , width , depth))
Children depth, diameter, height, unit, width
Instance

<dimensions>
  <unit normal="" normalId="" normalStd="" normalTridas="">{1,1}</unit>
</dimensions>
Source

<xs:element name="dimensions">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="unit"/>
      <xs:choice>
        <xs:sequence>
          <xs:element name="diameter" type="xs:decimal"/>
          <xs:element name="height" type="xs:decimal"/>
        </xs:sequence>
        <xs:sequence>
          <xs:element name="height" type="xs:decimal"/>
          <xs:element name="width" type="xs:decimal"/>
          <xs:element name="depth" type="xs:decimal"/>
        </xs:sequence>
      </xs:choice>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

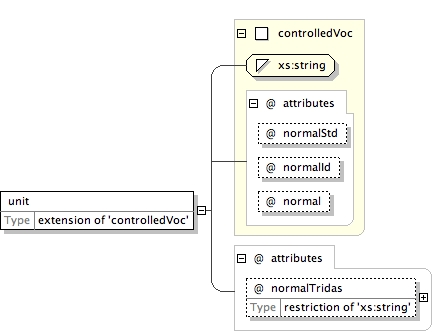

Element unit
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id4 tridasxmldocs0.tmp#id5 tridasxmldocs0.tmp#id6 tridasxmldocs0.tmp#id3 tridasxmldocs0.tmp#id95
Type extension of controlledVoc
Type hierarchy
Properties
content: complex
Used by
Elements dimensions, values
Attributes
QName Type Fixed Default Use Annotation
normal optional
normalId optional
normalStd optional
normalTridas restriction of xs:string optional
Source

<xs:element name="unit">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="controlledVoc">
        <xs:attribute name="normalTridas">
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value="micrometres"/>
              <xs:enumeration value="1/100th millimetres"/>
              <xs:enumeration value="1/10th millimetres"/>
              <xs:enumeration value="millimetres"/>
              <xs:enumeration value="centimetres"/>
              <xs:enumeration value="metres"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element dimensions/diameter
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:decimal
Properties
content: simple
Source

<xs:element name="diameter" type="xs:decimal"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element dimensions/height
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:decimal
Properties
content: simple
Source

<xs:element name="height" type="xs:decimal"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element dimensions/width
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:decimal
Properties
content: simple
Source

<xs:element name="width" type="xs:decimal"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element dimensions/depth
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:decimal
Properties
content: simple
Source

<xs:element name="depth" type="xs:decimal"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element authenticity
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element element
Source

<xs:element name="authenticity" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element processing
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element element
Source

<xs:element name="processing" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element marks
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element element
Source

<xs:element name="marks" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element altitude
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:double
Properties
content: simple
Used by
Element element
Source

<xs:element name="altitude" type="xs:double"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element slope
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id105 tridasxmldocs0.tmp#id106
Properties
content: complex
Used by
Element element
Model angle{0,1} , azimuth{0,1}
Children angle, azimuth
Instance

<slope>
  <angle>{0,1}</angle>
  <azimuth>{0,1}</azimuth>
</slope>
Source

<xs:element name="slope">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="angle" type="xs:integer" minOccurs="0"/>
      <xs:element name="azimuth" type="xs:integer" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element slope/angle
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:integer
Properties
content: simple
minOccurs: 0
Source

<xs:element name="angle" type="xs:integer" minOccurs="0"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element slope/azimuth
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:integer
Properties
content: simple
minOccurs: 0
Source

<xs:element name="azimuth" type="xs:integer" minOccurs="0"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element soil
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id108 tridasxmldocs0.tmp#id109
Properties
content: complex
Used by
Element element
Model description{0,1} , depth{0,1}
Children depth, description
Instance

<soil>
  <description>{0,1}</description>
  <depth>{0,1}</depth>
</soil>
Source

<xs:element name="soil">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="description" type="xs:string" minOccurs="0"/>
      <xs:element name="depth" type="xs:double" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element soil/description
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="description" type="xs:string" minOccurs="0"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element soil/depth
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
Source

<xs:element name="depth" type="xs:double" minOccurs="0"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element bedrock
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id111
Properties
content: complex
Used by
Element element
Model description{0,1}
Children description
Instance

<bedrock>
  <description>{0,1}</description>
</bedrock>
Source

<xs:element name="bedrock">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="description" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element bedrock/description
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source

<xs:element name="description" type="xs:string" minOccurs="0"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

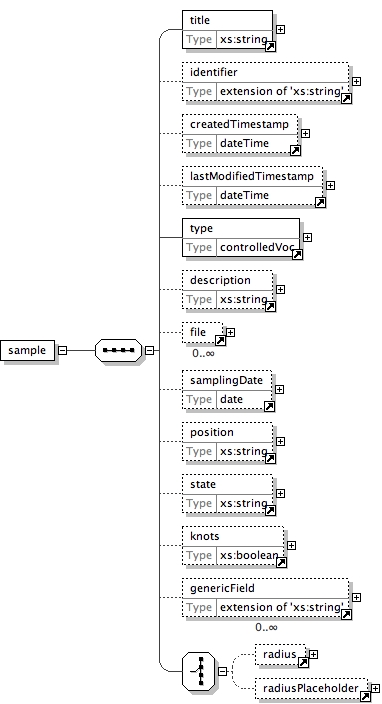

Element sample
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id26 tridasxmldocs0.tmp#id22 tridasxmldocs0.tmp#id10 tridasxmldocs0.tmp#id11 tridasxmldocs0.tmp#id24 tridasxmldocs0.tmp#id25 tridasxmldocs0.tmp#id63 tridasxmldocs0.tmp#id113 tridasxmldocs0.tmp#id114 tridasxmldocs0.tmp#id115 tridasxmldocs0.tmp#id116 tridasxmldocs0.tmp#id64 tridasxmldocs0.tmp#id117 tridasxmldocs0.tmp#id163
Properties
content: complex
Used by
Element element
Model title , identifier{0,1} , createdTimestamp{0,1} , lastModifiedTimestamp{0,1} , type , description{0,1} , file* , samplingDate{0,1} , position{0,1} , state{0,1} , knots{0,1} , genericField* , (radius{0,1} | radiusPlaceholder{0,1})
Children createdTimestamp, description, file, genericField, identifier, knots, lastModifiedTimestamp, position, radius, radiusPlaceholder, samplingDate, state, title, type
Instance

<sample>
  <title>{1,1}</title>
  <identifier domain="">{0,1}</identifier>
  <createdTimestamp certainty="">{0,1}</createdTimestamp>
  <lastModifiedTimestamp certainty="">{0,1}</lastModifiedTimestamp>
  <type normal="" normalId="" normalStd="">{1,1}</type>
  <description>{0,1}</description>
  <file xlink:href="">{0,unbounded}</file>
  <samplingDate certainty="">{0,1}</samplingDate>
  <position>{0,1}</position>
  <state>{0,1}</state>
  <knots>{0,1}</knots>
  <genericField name="" type="">{0,unbounded}</genericField>
</sample>
Source

<xs:element name="sample">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="title"/>
      <xs:element ref="identifier" minOccurs="0"/>
      <xs:element ref="createdTimestamp" minOccurs="0"/>
      <xs:element ref="lastModifiedTimestamp" minOccurs="0"/>
      <xs:element ref="type"/>
      <xs:element ref="description" minOccurs="0"/>
      <xs:element ref="file" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="samplingDate" minOccurs="0"/>
      <xs:element ref="position" minOccurs="0"/>
      <xs:element ref="state" minOccurs="0"/>
      <xs:element ref="knots" minOccurs="0"/>
      <xs:element ref="genericField" minOccurs="0" maxOccurs="unbounded"/>
      <xs:choice>
        <xs:element ref="radius" minOccurs="0"/>
        <xs:element ref="radiusPlaceholder" minOccurs="0"/>
      </xs:choice>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element samplingDate
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id13 tridasxmldocs0.tmp#id12
Type date
Properties
content: complex
Used by
Element sample
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
Source

<xs:element name="samplingDate" type="date"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element position
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element sample
Source

<xs:element name="position" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element state
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element sample
Source

<xs:element name="state" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element knots
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:boolean
Properties
content: simple
Used by
Element sample
Source

<xs:element name="knots" type="xs:boolean"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

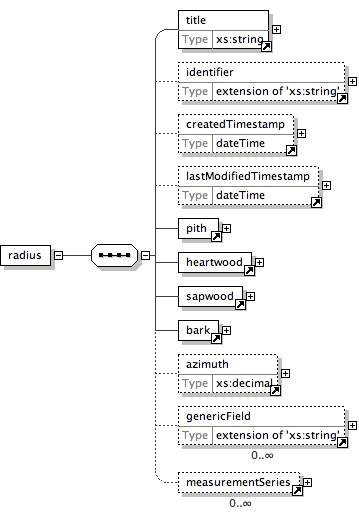

Element radius
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id26 tridasxmldocs0.tmp#id22 tridasxmldocs0.tmp#id10 tridasxmldocs0.tmp#id11 tridasxmldocs0.tmp#id118 tridasxmldocs0.tmp#id120 tridasxmldocs0.tmp#id124 tridasxmldocs0.tmp#id130 tridasxmldocs0.tmp#id132 tridasxmldocs0.tmp#id64 tridasxmldocs0.tmp#id133
Properties
content: complex
Used by
Element sample
Model title , identifier{0,1} , createdTimestamp{0,1} , lastModifiedTimestamp{0,1} , pith , heartwood , sapwood , bark , azimuth{0,1} , genericField* , measurementSeries*
Children azimuth, bark, createdTimestamp, genericField, heartwood, identifier, lastModifiedTimestamp, measurementSeries, pith, sapwood, title
Instance

<radius>
  <title>{1,1}</title>
  <identifier domain="">{0,1}</identifier>
  <createdTimestamp certainty="">{0,1}</createdTimestamp>
  <lastModifiedTimestamp certainty="">{0,1}</lastModifiedTimestamp>
  <pith presence="">{1,1}</pith>
  <heartwood presence="">{1,1}</heartwood>
  <sapwood presence="">{1,1}</sapwood>
  <bark presence="">{1,1}</bark>
  <azimuth>{0,1}</azimuth>
  <genericField name="" type="">{0,unbounded}</genericField>
  <measurementSeries id="">{0,unbounded}</measurementSeries>
</radius>
Source

<xs:element name="radius">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="title"/>
      <xs:element ref="identifier" minOccurs="0"/>
      <xs:element ref="createdTimestamp" minOccurs="0"/>
      <xs:element ref="lastModifiedTimestamp" minOccurs="0"/>
      <xs:element ref="pith"/>
      <xs:element ref="heartwood"/>
      <xs:element ref="sapwood"/>
      <xs:element ref="bark"/>
      <xs:element ref="azimuth" minOccurs="0"/>
      <xs:element ref="genericField" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="measurementSeries" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element pith
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id119
Properties
content: complex
Used by
Element radius
Attributes
QName Type Fixed Default Use Annotation
presence restriction of xs:string required
Source

<xs:element name="pith">
  <xs:complexType>
    <xs:attribute name="presence" use="required">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="present"/>
          <xs:enumeration value="absent"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element heartwood
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id123 tridasxmldocs0.tmp#id121 tridasxmldocs0.tmp#id122
Properties
content: complex
Used by
Element radius
Model missingHeartwoodRingsToPith{0,1} , missingHeartwoodRingsToPithFoundation{0,1}
Children missingHeartwoodRingsToPith, missingHeartwoodRingsToPithFoundation
Instance

<heartwood presence="">
  <missingHeartwoodRingsToPith>{0,1}</missingHeartwoodRingsToPith>
  <missingHeartwoodRingsToPithFoundation>{0,1}</missingHeartwoodRingsToPithFoundation>
</heartwood>
Attributes
QName Type Fixed Default Use Annotation
presence required
Source

<xs:element name="heartwood">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="missingHeartwoodRingsToPith" minOccurs="0"/>
      <xs:element ref="missingHeartwoodRingsToPithFoundation" minOccurs="0"/>
    </xs:sequence>
    <xs:attribute name="presence" use="required"/>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element missingHeartwoodRingsToPith
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element heartwood
Source

<xs:element name="missingHeartwoodRingsToPith" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element missingHeartwoodRingsToPithFoundation
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element heartwood
Source

<xs:element name="missingHeartwoodRingsToPithFoundation" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

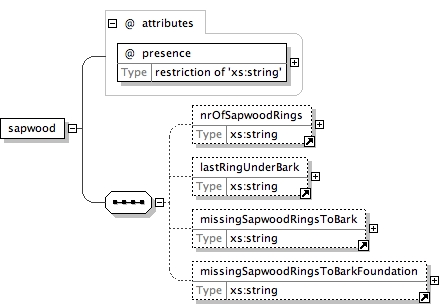

Element sapwood
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id129 tridasxmldocs0.tmp#id125 tridasxmldocs0.tmp#id126 tridasxmldocs0.tmp#id127 tridasxmldocs0.tmp#id128
Properties
content: complex
Used by
Element radius
Model nrOfSapwoodRings{0,1} , lastRingUnderBark{0,1} , missingSapwoodRingsToBark{0,1} , missingSapwoodRingsToBarkFoundation{0,1}
Children lastRingUnderBark, missingSapwoodRingsToBark, missingSapwoodRingsToBarkFoundation, nrOfSapwoodRings
Instance

<sapwood presence="">
  <nrOfSapwoodRings>{0,1}</nrOfSapwoodRings>
  <lastRingUnderBark>{0,1}</lastRingUnderBark>
  <missingSapwoodRingsToBark>{0,1}</missingSapwoodRingsToBark>
  <missingSapwoodRingsToBarkFoundation>{0,1}</missingSapwoodRingsToBarkFoundation>
</sapwood>
Attributes
QName Type Fixed Default Use Annotation
presence restriction of xs:string required
Source

<xs:element name="sapwood">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="nrOfSapwoodRings" minOccurs="0"/>
      <xs:element ref="lastRingUnderBark" minOccurs="0"/>
      <xs:element ref="missingSapwoodRingsToBark" minOccurs="0"/>
      <xs:element ref="missingSapwoodRingsToBarkFoundation" minOccurs="0"/>
    </xs:sequence>
    <xs:attribute name="presence" use="required">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="not applicable"/>
          <xs:enumeration value="absent"/>
          <xs:enumeration value="complete"/>
          <xs:enumeration value="incomplete"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element nrOfSapwoodRings
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element sapwood
Source

<xs:element name="nrOfSapwoodRings" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element lastRingUnderBark
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element sapwood
Source

<xs:element name="lastRingUnderBark" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element missingSapwoodRingsToBark
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element sapwood
Source

<xs:element name="missingSapwoodRingsToBark" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element missingSapwoodRingsToBarkFoundation
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element sapwood
Source

<xs:element name="missingSapwoodRingsToBarkFoundation" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element bark
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id131
Properties
content: complex
Used by
Element radius
Attributes
QName Type Fixed Default Use Annotation
presence restriction of xs:string required
Source

<xs:element name="bark">
  <xs:complexType>
    <xs:attribute name="presence" use="required">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="present"/>
          <xs:enumeration value="absent"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element azimuth
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:decimal
Properties
content: simple
Used by
Element radius
Source

<xs:element name="azimuth" type="xs:decimal"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd

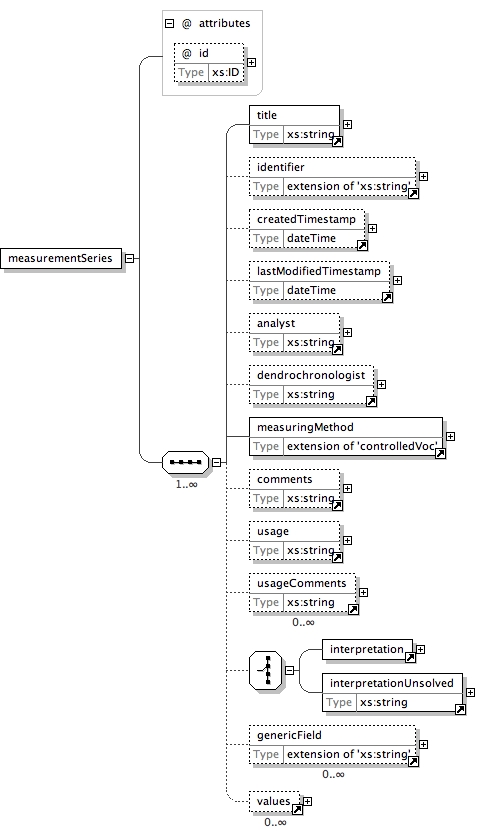

Element measurementSeries
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id162 tridasxmldocs0.tmp#id26 tridasxmldocs0.tmp#id22 tridasxmldocs0.tmp#id10 tridasxmldocs0.tmp#id11 tridasxmldocs0.tmp#id134 tridasxmldocs0.tmp#id135 tridasxmldocs0.tmp#id136 tridasxmldocs0.tmp#id138 tridasxmldocs0.tmp#id139 tridasxmldocs0.tmp#id140 tridasxmldocs0.tmp#id141 tridasxmldocs0.tmp#id151 tridasxmldocs0.tmp#id64 tridasxmldocs0.tmp#id152
Properties
content: complex
Used by
Element radius
Model title , identifier{0,1} , createdTimestamp{0,1} , lastModifiedTimestamp{0,1} , analyst{0,1} , dendrochronologist{0,1} , measuringMethod , comments{0,1} , usage{0,1} , usageComments* , (interpretation | interpretationUnsolved) , genericField* , values*
Children analyst, comments, createdTimestamp, dendrochronologist, genericField, identifier, interpretation, interpretationUnsolved, lastModifiedTimestamp, measuringMethod, title, usage, usageComments, values
Instance

<measurementSeries id="">
  <title>{1,1}</title>
  <identifier domain="">{0,1}</identifier>
  <createdTimestamp certainty="">{0,1}</createdTimestamp>
  <lastModifiedTimestamp certainty="">{0,1}</lastModifiedTimestamp>
  <analyst>{0,1}</analyst>
  <dendrochronologist>{0,1}</dendrochronologist>

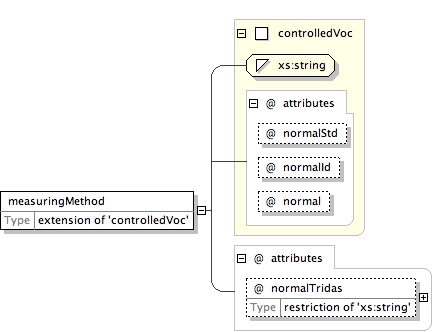

  <measuringMethod normal="" normalId="" normalStd="" normalTridas="">{1,1}</measuringMethod>
  <comments>{0,1}</comments>
  <usage>{0,1}</usage>
  <usageComments>{0,unbounded}</usageComments>
  <genericField name="" type="">{0,unbounded}</genericField>
  <values>{0,unbounded}</values>
</measurementSeries>
Attributes
QName Type Fixed Default Use Annotation
id xs:ID optional
Source

<xs:element name="measurementSeries">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element ref="title"/>
      <xs:element ref="identifier" minOccurs="0"/>
      <xs:element ref="createdTimestamp" minOccurs="0"/>
      <xs:element ref="lastModifiedTimestamp" minOccurs="0"/>
      <xs:element ref="analyst" minOccurs="0"/>
      <xs:element ref="dendrochronologist" minOccurs="0"/>
      <xs:element ref="measuringMethod"/>
      <xs:element ref="comments" minOccurs="0"/>
      <xs:element ref="usage" minOccurs="0"/>
      <xs:element ref="usageComments" minOccurs="0" maxOccurs="unbounded"/>
      <xs:choice minOccurs="0">
        <xs:element ref="interpretation"/>
        <xs:element ref="interpretationUnsolved"/>
      </xs:choice>
      <xs:element ref="genericField" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="values" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element analyst
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source

<xs:element name="analyst" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element dendrochronologist
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source

<xs:element name="dendrochronologist" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element measuringMethod
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id4 tridasxmldocs0.tmp#id5 tridasxmldocs0.tmp#id6 tridasxmldocs0.tmp#id3 tridasxmldocs0.tmp#id137
Type extension of controlledVoc
Type hierarchy
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
normal optional
normalId optional
normalStd optional
normalTridas restriction of xs:string optional
Source

<xs:element name="measuringMethod">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="controlledVoc">
        <xs:attribute name="normalTridas">
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value=""/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element comments
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source

<xs:element name="comments" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element usage
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source

<xs:element name="usage" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element usageComments
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source

<xs:element name="usageComments" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element interpretation
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id142 tridasxmldocs0.tmp#id143 tridasxmldocs0.tmp#id144 tridasxmldocs0.tmp#id148 tridasxmldocs0.tmp#id147 tridasxmldocs0.tmp#id149 tridasxmldocs0.tmp#id150
Properties
content: complex
Used by
Model firstYear{0,1} , datingReference{0,1} , statFoundation* , sproutYear{0,1} , usedSoftware{0,1} , deathYear{0,1} , provenance{0,1}
Children datingReference, deathYear, firstYear, provenance, sproutYear, statFoundation, usedSoftware
Instance

<interpretation>
  <firstYear certainty="" suffix="">{0,1}</firstYear>
  <datingReference>{0,1}</datingReference>
  <statFoundation>{0,unbounded}</statFoundation>
  <sproutYear certainty="" suffix="">{0,1}</sproutYear>
  <usedSoftware>{0,1}</usedSoftware>
  <deathYear certainty="" suffix="">{0,1}</deathYear>
  <provenance>{0,1}</provenance>
</interpretation>
Source

<xs:element name="interpretation">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="firstYear" minOccurs="0"/>
      <xs:element ref="datingReference" minOccurs="0"/>
      <xs:element ref="statFoundation" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="sproutYear" minOccurs="0"/>
      <xs:element ref="usedSoftware" minOccurs="0"/>
      <xs:element ref="deathYear" minOccurs="0"/>
      <xs:element ref="provenance" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element firstYear
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id15 tridasxmldocs0.tmp#id16 tridasxmldocs0.tmp#id14
Type year
Properties
content: complex
Used by
Element interpretation
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
suffix restriction of xs:string required
Source

<xs:element name="firstYear" type="year"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element datingReference
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id17
Properties
content: complex
Used by
Element interpretation
Model linkSeries
Children linkSeries
Instance

<datingReference>
  <linkSeries>{1,1}</linkSeries>
</datingReference>
Source

<xs:element name="datingReference">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="linkSeries"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element statFoundation
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id145 tridasxmldocs0.tmp#id24 tridasxmldocs0.tmp#id146 tridasxmldocs0.tmp#id147
Properties
content: complex
Used by
Element interpretation
Model statValue , type , significanceLevel{0,1} , usedSoftware
Children significanceLevel, statValue, type, usedSoftware
Instance

<statFoundation>
  <statValue>{1,1}</statValue>
  <type normal="" normalId="" normalStd="">{1,1}</type>
  <significanceLevel>{0,1}</significanceLevel>
  <usedSoftware>{1,1}</usedSoftware>
</statFoundation>
Source

<xs:element name="statFoundation">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="statValue"/>
      <xs:element ref="type"/>
      <xs:element ref="significanceLevel" minOccurs="0"/>
      <xs:element ref="usedSoftware"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element statValue
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:decimal
Properties
content: simple
Used by
Element statFoundation
Source

<xs:element name="statValue" type="xs:decimal"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element significanceLevel
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:decimal
Properties
content: simple
Used by
Element statFoundation
Source

<xs:element name="significanceLevel" type="xs:decimal"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element usedSoftware
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source

<xs:element name="usedSoftware" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element sproutYear
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id15 tridasxmldocs0.tmp#id16 tridasxmldocs0.tmp#id14
Type year
Properties
content: complex
Used by
Element interpretation
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
suffix restriction of xs:string required
Source

<xs:element name="sproutYear" type="year"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element deathYear
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id15 tridasxmldocs0.tmp#id16 tridasxmldocs0.tmp#id14
Type year
Properties
content: complex
Used by
Element interpretation
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
suffix restriction of xs:string required
Source

<xs:element name="deathYear" type="year"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element provenance
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element interpretation
Source

<xs:element name="provenance" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element interpretationUnsolved
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source

<xs:element name="interpretationUnsolved" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element values
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id153 tridasxmldocs0.tmp#id94 tridasxmldocs0.tmp#id155 tridasxmldocs0.tmp#id156
Properties
content: complex
Used by
Model ((variable , unit) | unitless) , value+
Children unit, unitless, value, variable
Instance

<values>
  <variable normal="" normalId="" normalStd="" normalTridas="">{1,1}</variable>
  <unit normal="" normalId="" normalStd="" normalTridas="">{1,1}</unit>
  <unitless>{1,1}</unitless>
  <value count="" index="" value="">{1,unbounded}</value>
</values>
Source

<xs:element name="values">
  <xs:complexType>
    <xs:sequence>
      <xs:choice>
        <xs:sequence>
          <xs:element ref="variable"/>
          <xs:element ref="unit"/>
        </xs:sequence>
        <xs:element ref="unitless"/>
      </xs:choice>
      <xs:element ref="value" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element variable
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id4 tridasxmldocs0.tmp#id5 tridasxmldocs0.tmp#id6 tridasxmldocs0.tmp#id3 tridasxmldocs0.tmp#id154
Type extension of controlledVoc
Type hierarchy
Properties
content: complex
Used by
Element values
Attributes
QName Type Fixed Default Use Annotation
normal optional
normalId optional
normalStd optional
normalTridas restriction of xs:string optional
Source

<xs:element name="variable">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="controlledVoc">
        <xs:attribute name="normalTridas">
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value="Ring width"/>
              <xs:enumeration value="Earlywood width"/>
              <xs:enumeration value="Latewood width"/>
              <xs:enumeration value="Ring density"/>
              <xs:enumeration value="Earlywood density"/>
              <xs:enumeration value="Latewood density"/>
              <xs:enumeration value="Maximum density"/>
              <xs:enumeration value="Latewood percent"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element unitless
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Properties
content: complex
Used by
Element values
Source

<xs:element name="unitless">
  <xs:complexType/>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element value
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id159 tridasxmldocs0.tmp#id160 tridasxmldocs0.tmp#id161 tridasxmldocs0.tmp#id157
Properties
content: complex
Used by
Element values
Model remark*
Children remark
Instance

<value count="" index="" value="">
  <remark normal="" normalId="" normalStd="" normalTridas="">{0,unbounded}</remark>
</value>
Attributes
QName Type Fixed Default Use Annotation
count xs:integer optional
index xs:string required
value xs:string required
Source

<xs:element name="value">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="remark" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="value" type="xs:string" use="required"/>
    <xs:attribute name="index" type="xs:string" use="required"/>
    <xs:attribute name="count" type="xs:integer" use="optional"/>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element remark
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id4 tridasxmldocs0.tmp#id5 tridasxmldocs0.tmp#id6 tridasxmldocs0.tmp#id3 tridasxmldocs0.tmp#id158
Type extension of controlledVoc
Type hierarchy
Properties
content: complex
Used by
Element value
Attributes
QName Type Fixed Default Use Annotation
normal optional
normalId optional
normalStd optional
normalTridas restriction of xs:string optional
Source

<xs:element name="remark">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="controlledVoc">
        <xs:attribute name="normalTridas">
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value="Fire damage"/>
              <xs:enumeration value="Frost damage"/>
              <xs:enumeration value="Crack"/>
              <xs:enumeration value="False ring(s)"/>
              <xs:enumeration value="Compression wood"/>
              <xs:enumeration value="Tension wood"/>
              <xs:enumeration value="Traumatic ducts"/>
              <xs:enumeration value="Unspecified injury"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element radiusPlaceholder
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id164
Properties
content: complex
Used by
Element sample
Model measurementSeriesPlaceholder
Children measurementSeriesPlaceholder
Instance

<radiusPlaceholder>
  <measurementSeriesPlaceholder id="">{1,1}</measurementSeriesPlaceholder>
</radiusPlaceholder>
Source

<xs:element name="radiusPlaceholder">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="measurementSeriesPlaceholder"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element measurementSeriesPlaceholder
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id165
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
id xs:ID required
Source

<xs:element name="measurementSeriesPlaceholder">
  <xs:complexType>
    <xs:attribute name="id" type="xs:ID" use="required"/>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element derivedSeries
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id171 tridasxmldocs0.tmp#id26 tridasxmldocs0.tmp#id22 tridasxmldocs0.tmp#id10 tridasxmldocs0.tmp#id11 tridasxmldocs0.tmp#id24 tridasxmldocs0.tmp#id17 tridasxmldocs0.tmp#id167 tridasxmldocs0.tmp#id168 tridasxmldocs0.tmp#id169 tridasxmldocs0.tmp#id170 tridasxmldocs0.tmp#id138 tridasxmldocs0.tmp#id139 tridasxmldocs0.tmp#id140 tridasxmldocs0.tmp#id141 tridasxmldocs0.tmp#id151 tridasxmldocs0.tmp#id27 tridasxmldocs0.tmp#id64 tridasxmldocs0.tmp#id152
Properties
content: complex
Used by
Element project
Model title , identifier{0,1} , createdTimestamp{0,1} , lastModifiedTimestamp{0,1} , type , linkSeries+ , objective{0,1} , standardizingMethod{0,1} , author{0,1} , version{0,1} , comments{0,1} , usage{0,1} , usageComments* , (interpretation | interpretationUnsolved) , extent{0,1} , genericField* , values*
Children author, comments, createdTimestamp, extent, genericField, identifier, interpretation, interpretationUnsolved, lastModifiedTimestamp, linkSeries, objective, standardizingMethod, title, type, usage, usageComments, values, version
Instance

<derivedSeries id="">
  <title>{1,1}</title>
  <identifier domain="">{0,1}</identifier>
  <createdTimestamp certainty="">{0,1}</createdTimestamp>
  <lastModifiedTimestamp certainty="">{0,1}</lastModifiedTimestamp>
  <type normal="" normalId="" normalStd="">{1,1}</type>
  <linkSeries>{1,unbounded}</linkSeries>
  <objective>{0,1}</objective>
  <standardizingMethod>{0,1}</standardizingMethod>
  <author>{0,1}</author>
  <version>{0,1}</version>
  <comments>{0,1}</comments>
  <usage>{0,1}</usage>
  <usageComments>{0,unbounded}</usageComments>
  <extent>{0,1}</extent>
  <genericField name="" type="">{0,unbounded}</genericField>
  <values>{0,unbounded}</values>
</derivedSeries>
Attributes
QName Type Fixed Default Use Annotation
id xs:ID optional
Source

<xs:element name="derivedSeries">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="title"/>
      <xs:element ref="identifier" minOccurs="0"/>
      <xs:element ref="createdTimestamp" minOccurs="0"/>
      <xs:element ref="lastModifiedTimestamp" minOccurs="0"/>
      <xs:element ref="type"/>
      <xs:element ref="linkSeries" maxOccurs="unbounded"/>
      <xs:element ref="objective" minOccurs="0"/>
      <xs:element ref="standardizingMethod" minOccurs="0"/>
      <xs:element ref="author" minOccurs="0"/>
      <xs:element ref="version" minOccurs="0"/>
      <xs:element ref="comments" minOccurs="0"/>
      <xs:element ref="usage" minOccurs="0"/>
      <xs:element ref="usageComments" minOccurs="0" maxOccurs="unbounded"/>
      <xs:choice minOccurs="0">
        <xs:element ref="interpretation"/>
        <xs:element ref="interpretationUnsolved"/>
      </xs:choice>
      <xs:element ref="extent" minOccurs="0"/>
      <xs:element ref="genericField" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element ref="values" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:attribute name="id" type="xs:ID"/>
  </xs:complexType>
</xs:element>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element objective
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element derivedSeries
Source

<xs:element name="objective" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element standardizingMethod
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element derivedSeries
Source

<xs:element name="standardizingMethod" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element author
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element derivedSeries
Source

<xs:element name="author" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element version
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Element derivedSeries
Source

<xs:element name="version" type="xs:string"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element measuringDate
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id13 tridasxmldocs0.tmp#id12
Type date
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
Source

<xs:element name="measuringDate" type="date"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Element derivationDate
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id13 tridasxmldocs0.tmp#id12
Type date
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
Source

<xs:element name="derivationDate" type="date"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Complex Type controlledVoc
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id4 tridasxmldocs0.tmp#id5 tridasxmldocs0.tmp#id6
Type extension of xs:string
Used by
Attributes
QName Type Fixed Default Use Annotation
normal optional
normalId optional
normalStd optional
Source

<xs:complexType name="controlledVoc">
  <xs:simpleContent>
    <xs:extension base="xs:string">
      <xs:attribute name="normalStd"/>
      <xs:attribute name="normalId"/>
      <xs:attribute name="normal"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Simple Type certainty
Namespace http://www.tridas.org/1.1
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration unknown, exact, approximately, after, before
Used by
Source

<xs:simpleType name="certainty">
  <xs:restriction base="xs:string">
    <xs:enumeration value="unknown"/>
    <xs:enumeration value="exact"/>
    <xs:enumeration value="approximately"/>
    <xs:enumeration value="after"/>
    <xs:enumeration value="before"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Complex Type dateTime
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id9
Type extension of xs:dateTime
Used by
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
Source

<xs:complexType name="dateTime">
  <xs:simpleContent>
    <xs:extension base="xs:dateTime">
      <xs:attribute name="certainty" type="certainty" use="optional"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Complex Type date
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id13
Type extension of xs:date
Used by
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
Source

<xs:complexType name="date">
  <xs:simpleContent>
    <xs:extension base="xs:date">
      <xs:attribute name="certainty" type="certainty" use="optional"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Complex Type year
Namespace http://www.tridas.org/1.1
Diagram
Diagram tridasxmldocs0.tmp#id15 tridasxmldocs0.tmp#id16
Type extension of xs:positiveInteger
Used by
Attributes
QName Type Fixed Default Use Annotation
certainty certainty optional
suffix restriction of xs:string required
Source

<xs:complexType name="year">
  <xs:simpleContent>
    <xs:extension base="xs:positiveInteger">
      <xs:attribute name="certainty" type="certainty" use="optional"/>
      <xs:attribute name="suffix" use="required">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:enumeration value="AD"/>
            <xs:enumeration value="BC"/>
            <xs:enumeration value="BP"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:attribute>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute controlledVoc/@normalStd
Namespace No namespace
Used by
Complex Type controlledVoc
Source

<xs:attribute name="normalStd"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute controlledVoc/@normalId
Namespace No namespace
Used by
Complex Type controlledVoc
Source

<xs:attribute name="normalId"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute controlledVoc/@normal
Namespace No namespace
Used by
Complex Type controlledVoc
Source

<xs:attribute name="normal"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute dateTime/@certainty
Namespace No namespace
Type certainty
Properties
use: optional
Facets
enumeration unknown, exact, approximately, after, before
Used by
Complex Type dateTime
Source

<xs:attribute name="certainty" type="certainty" use="optional"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute date/@certainty
Namespace No namespace
Type certainty
Properties
use: optional
Facets
enumeration unknown, exact, approximately, after, before
Used by
Complex Type date
Source

<xs:attribute name="certainty" type="certainty" use="optional"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute year/@certainty
Namespace No namespace
Type certainty
Properties
use: optional
Facets
enumeration unknown, exact, approximately, after, before
Used by
Complex Type year
Source

<xs:attribute name="certainty" type="certainty" use="optional"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute year/@suffix
Namespace No namespace
Type restriction of xs:string
Properties
use: required
Facets
enumeration AD, BC, BP
Used by
Complex Type year
Source

<xs:attribute name="suffix" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="AD"/>
      <xs:enumeration value="BC"/>
      <xs:enumeration value="BP"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute idRef/linkSeries/@ref
Namespace No namespace
Type xs:IDREF
Properties
content: simple
Used by
Source

<xs:attribute name="ref" type="xs:IDREF"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute identifier/@domain
Namespace No namespace
Properties
use: required
Used by
Element identifier
Source

<xs:attribute name="domain" use="required"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute genericField/@name
Namespace No namespace
Properties
use: required
Used by
Element genericField
Source

<xs:attribute name="name" use="required"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute genericField/@type
Namespace No namespace
Properties
use: optional
Used by
Element genericField
Source

<xs:attribute name="type" use="optional"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute name/@acronym
Namespace No namespace
Properties
use: optional
Used by
Element name
Source

<xs:attribute name="acronym" use="optional"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute category/@normalTridas
Namespace No namespace
Type restriction of xs:string
Properties
content: simple
Facets
enumeration
Used by
Element category
Source

<xs:attribute name="normalTridas">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value=""/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute taxon/@normalTridas
Namespace No namespace
Type restriction of xs:string
Properties
content: simple
Facets
enumeration
Used by
Element taxon
Source

<xs:attribute name="normalTridas">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value=""/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute shape/@normalTridas
Namespace No namespace
Type restriction of xs:string
Properties
content: simple
Facets
enumeration
Used by
Element shape
Source

<xs:attribute name="normalTridas">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value=""/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute unit/@normalTridas
Namespace No namespace
Type restriction of xs:string
Properties
content: simple
Facets
enumeration micrometres, 1/100th millimetres, 1/10th millimetres, millimetres, centimetres, metres
Used by
Element unit
Source

<xs:attribute name="normalTridas">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="micrometres"/>
      <xs:enumeration value="1/100th millimetres"/>
      <xs:enumeration value="1/10th millimetres"/>
      <xs:enumeration value="millimetres"/>
      <xs:enumeration value="centimetres"/>
      <xs:enumeration value="metres"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute pith/@presence
Namespace No namespace
Type restriction of xs:string
Properties
use: required
Facets
enumeration present, absent
Used by
Element pith
Source

<xs:attribute name="presence" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="present"/>
      <xs:enumeration value="absent"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute heartwood/@presence
Namespace No namespace
Properties
use: required
Used by
Element heartwood
Source

<xs:attribute name="presence" use="required"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute sapwood/@presence
Namespace No namespace
Type restriction of xs:string
Properties
use: required
Facets
enumeration not applicable, absent, complete, incomplete
Used by
Element sapwood
Source

<xs:attribute name="presence" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="not applicable"/>
      <xs:enumeration value="absent"/>
      <xs:enumeration value="complete"/>
      <xs:enumeration value="incomplete"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute bark/@presence
Namespace No namespace
Type restriction of xs:string
Properties
use: required
Facets
enumeration present, absent
Used by
Element bark
Source

<xs:attribute name="presence" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="present"/>
      <xs:enumeration value="absent"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute measuringMethod/@normalTridas
Namespace No namespace
Type restriction of xs:string
Properties
content: simple
Facets
enumeration
Used by
Element measuringMethod
Source

<xs:attribute name="normalTridas">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value=""/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute variable/@normalTridas
Namespace No namespace
Type restriction of xs:string
Properties
content: simple
Facets
enumeration Ring width, Earlywood width, Latewood width, Ring density, Earlywood density, Latewood density, Maximum density, Latewood percent
Used by
Element variable
Source

<xs:attribute name="normalTridas">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="Ring width"/>
      <xs:enumeration value="Earlywood width"/>
      <xs:enumeration value="Latewood width"/>
      <xs:enumeration value="Ring density"/>
      <xs:enumeration value="Earlywood density"/>
      <xs:enumeration value="Latewood density"/>
      <xs:enumeration value="Maximum density"/>
      <xs:enumeration value="Latewood percent"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute remark/@normalTridas
Namespace No namespace
Type restriction of xs:string
Properties
content: simple
Facets
enumeration Fire damage, Frost damage, Crack, False ring(s), Compression wood, Tension wood, Traumatic ducts, Unspecified injury
Used by
Element remark
Source

<xs:attribute name="normalTridas">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="Fire damage"/>
      <xs:enumeration value="Frost damage"/>
      <xs:enumeration value="Crack"/>
      <xs:enumeration value="False ring(s)"/>
      <xs:enumeration value="Compression wood"/>
      <xs:enumeration value="Tension wood"/>
      <xs:enumeration value="Traumatic ducts"/>
      <xs:enumeration value="Unspecified injury"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute value/@value
Namespace No namespace
Type xs:string
Properties
use: required
Used by
Element value
Source

<xs:attribute name="value" type="xs:string" use="required"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute value/@index
Namespace No namespace
Type xs:string
Properties
use: required
Used by
Element value
Source

<xs:attribute name="index" type="xs:string" use="required"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute value/@count
Namespace No namespace
Type xs:integer
Properties
use: optional
Used by
Element value
Source

<xs:attribute name="count" type="xs:integer" use="optional"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute measurementSeries/@id
Namespace No namespace
Type xs:ID
Properties
content: simple
Used by
Source

<xs:attribute name="id" type="xs:ID"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute measurementSeriesPlaceholder/@id
Namespace No namespace
Type xs:ID
Properties
use: required
Used by
Source

<xs:attribute name="id" type="xs:ID" use="required"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
Attribute derivedSeries/@id
Namespace No namespace
Type xs:ID
Properties
content: simple
Used by
Element derivedSeries
Source

<xs:attribute name="id" type="xs:ID"/>
Schema location file:/Volumes/dendroserver/tridas.org/1.1/tridas.xsd
XML Schema documentation generated by ® XML Editor.
